Drying Oven – mod. FA1

Technical Features

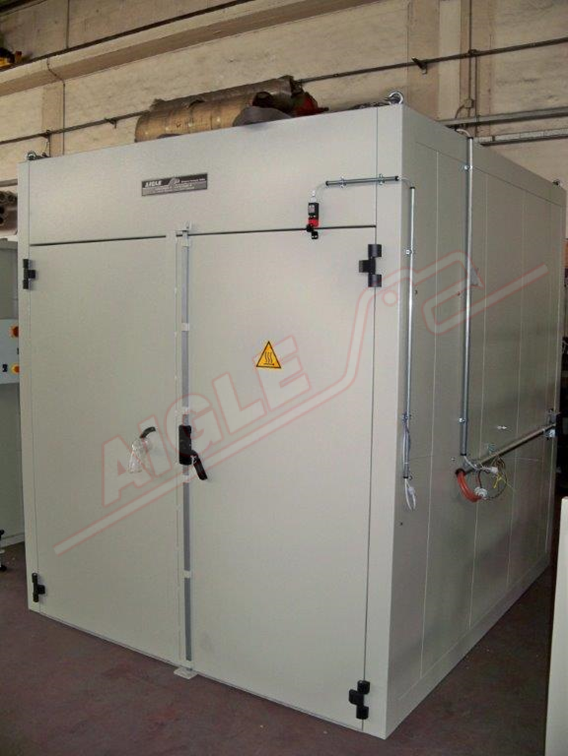

Drying Oven – mod. FA1

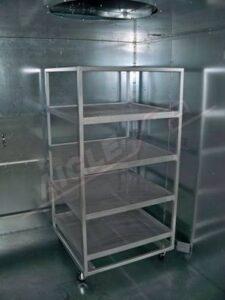

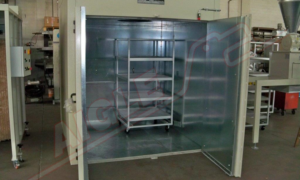

This is an oven structure with forced convection and indirect exchange with hot air recirculating around the electric resistances. The structure is made with bars and panels in carbon steel and galvanized steel inside, with thermic insulation with rock wool and gaskets in glass fiber. Air recirculating inside, through a helical electric fan, goes over a stretched shaft motor which is useful for high temperatures. The oven consists of swing doors with a blocking device and limit switch for when heating is occurring. The oven can be supplied with trolleys for supporting the processed products.

The heating system is equipped with stainless steel electrical heaters, useful for recirculated air, finned and properly arranged for an optimal thermic exchange. Checking and adjusting of temperatures are obtained by a digital thermo-regulator on the control board.

The electrical board & PLC have a metallic control board, equipped with a door-lock general switch, warning lights, and all the necessary requirements for the correct functionality of the machine. The checking and adjusting of the temperature, as far as utilities managing, are managed by PLC.

Technical data

min 80°C, max 200°C
galvanized steel / painted steel
90 mm. of roak wool
1 or 2 - silicone joint
electric - power from 12 to 36 kW
microprocessor PID action
1 extraction intake diam. 100 mm.
1 intake for recirculation with metallic net filter
feeding tension 3x400V 50 Hz Auxiliary tension 24VDC

AIGLE Macchine Srl
