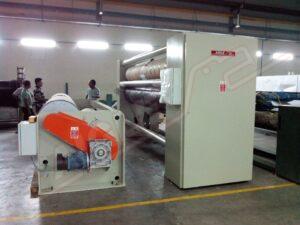

Calendering Unit – mod. GG/IR

Technical Features

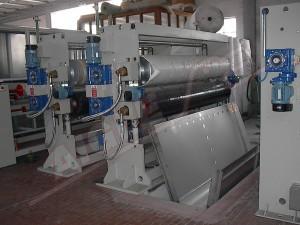

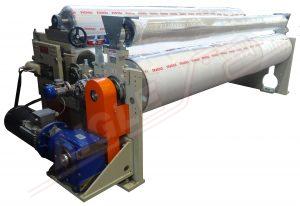

Calendering Unit – mod. GG/IR

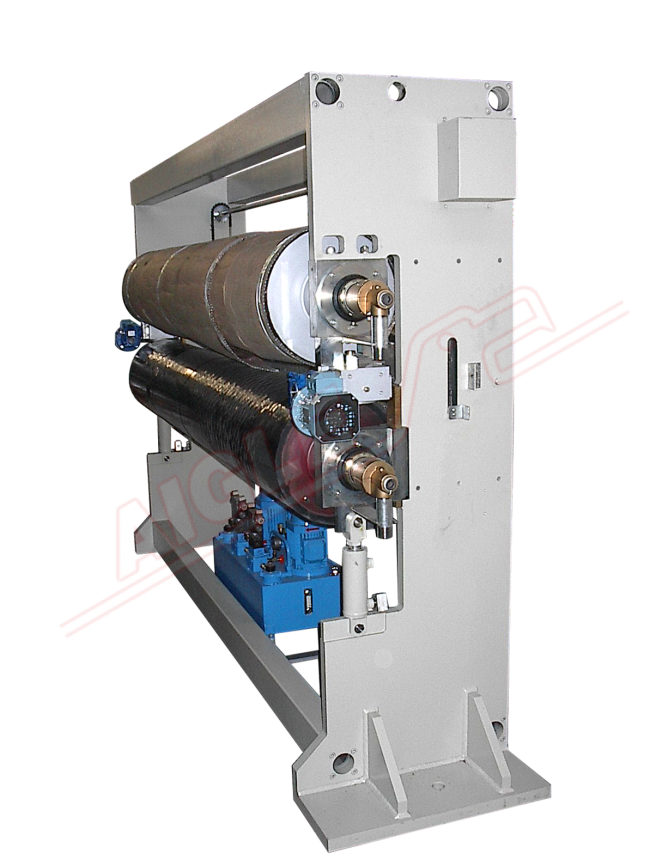

The Calendering Unit mod. GG/IR can operate with hot or cold calendering roll.

It consists of:
– Two heavy duty and steady machine shoulders which carry all the machine elements
– Counter roller covered with hard neoprene rubber
– Hard chromed ground upper calendering roller, equipped with quick disengagement system, it can be replaced with an embossed roller for embossing effect
– Double acting twin air cylinders to control pressure between the two rollers, with extremely accurate adjustment to ensure absolutely uniform pressure
– High precision micrometre adjustment to control the gap between the rollers
– Auxiliary cooling cylinder with water circulation, opposed to the counter roller, in order to reduce cylinder surface temperature
– Rotary joints with syphon tubes for the embossing roller, counter roller and auxiliary cooling cylinder
– Thermoregulation and oil circulation pump is connected with the embossing roller

Technical data

to be defined
400 V/50 Hz/three-phase
5 kW
7±1 Kg/cm²

AIGLE Macchine Srl
