Coating Machine – mod. BSR/F

Technical Features

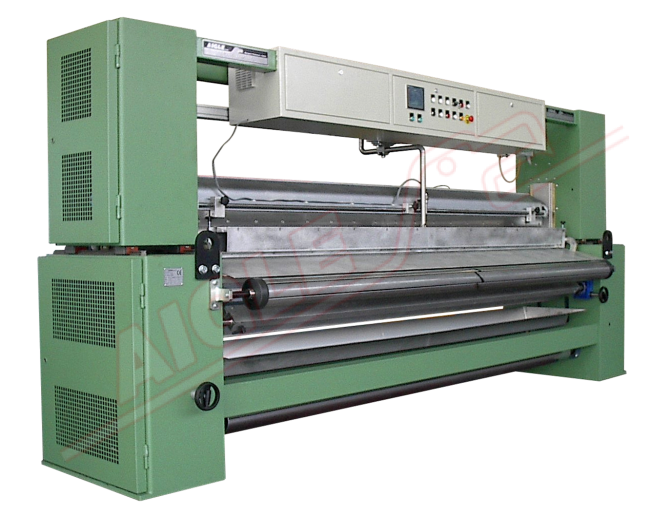

Coating Machine – mod. BSR/F

The Coating Machine mod. BSR/F is used to coat fabric (with resin and/or adhesives).

The machine’s features are:

– Easy implementation: the coating machine can be placed at the inlet of a common stenter

– Maximum control over compound quantity; process reproducibility is guaranteed

– Great flexibility in choosing compounds and textile supports, the variety of which is continuously growing

– Great accuracy in the tensioning of textile support passing through the machine.
The unit can be used for both air-coating and coating on cylinder and it is equipped with a motorized device to adjust coating thickness through digital displays, and to lift the blade when the seam passes through.

Technical data

to be defined
400 V/50 Hz/three-phase
3 kW
7±1 Kg/cm²

AIGLE Macchine Srl
